Floatless Level Switch Wiring Diagram

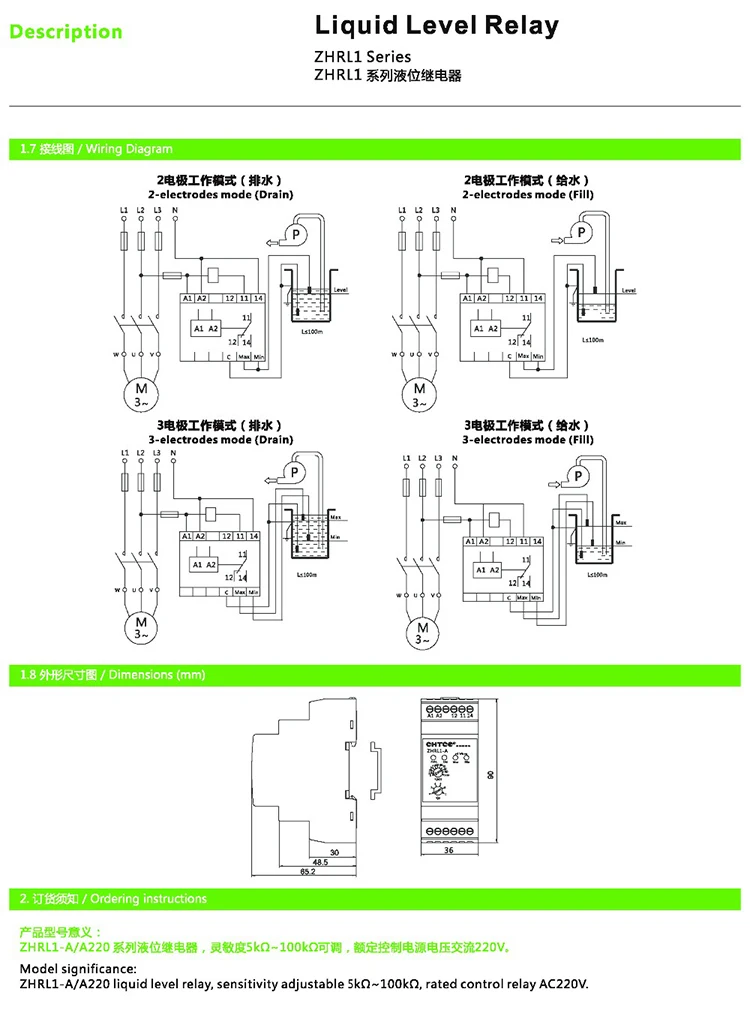

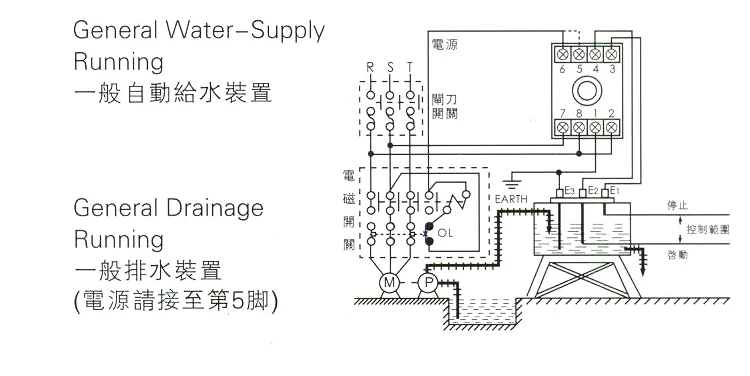

Wiring diagram of a water pump machine. Floatless level controllers the 61f model can be selected according to the control method installation method liquid to be detected wiring length and other requirements.

Floatless Level Switch Controller Relay Water Level Controller 61f Gp N8 Buy Floatless Controllers Floatless Relay Level Control Relays Product On

So thats at least four if not six wires that need to be hooked up to the control circuitry.

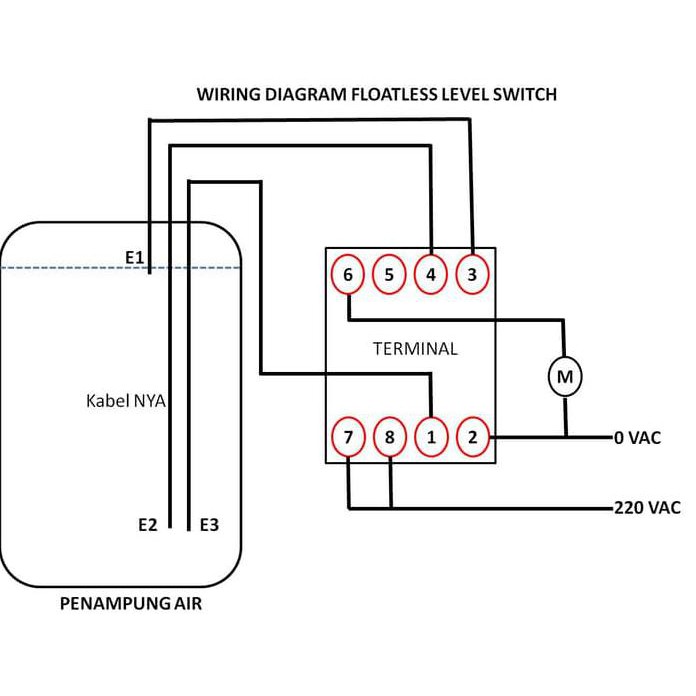

Floatless level switch wiring diagram. Wiring diagram of a jojo tank with automanuel switch and float switch. Ce marking n and n8 models and ulcsa. Connections u p 1 power supply water supply.

Floatless level switch compact type 61f g at n. 61f g at n 120240 vac in this catalog have been discontinued. Floatless level switch compact plug in type 61f gp n at space saving design ideal for control panel downsizing.

Table of contents how do old float switches work how new float switches work how single point multi point switches work new float switch working principle in the past old float switches worked by opening and closing dry contacts to send electrical signals that set off a low water level alarm. They used magnetic reed. Wiring diagram of 3 motors controled by 1 pressure switch.

Easy identification of operating status with led operation indicator. 61f g1 61f g2 61f g3 61f g4 61f i 61f 11. 494 38 84 mm hwd.

The above wiring diagram is for a rated voltage of 110220 vac. View and download omron 61f g manual online. Independent dpdt contacts on 11 pin models.

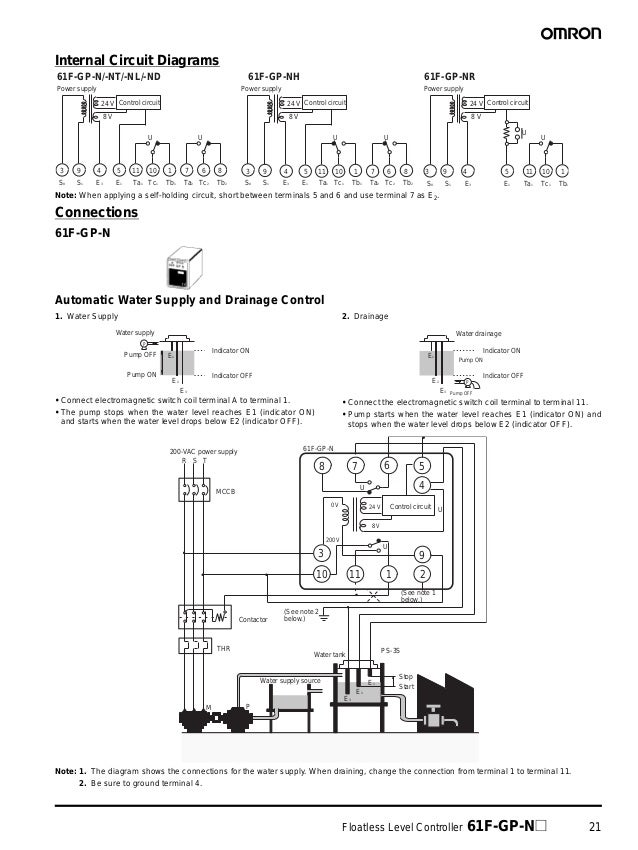

Wiring diagram of a simple level switch controller connected to a pumping machine. Refer to safety precautions for floatless level controllers. The low level switch wires to terminals 1 and 2 the high level switch to terminals 3 and 4 and the contacts for seal in relay a to terminals 5 and 6.

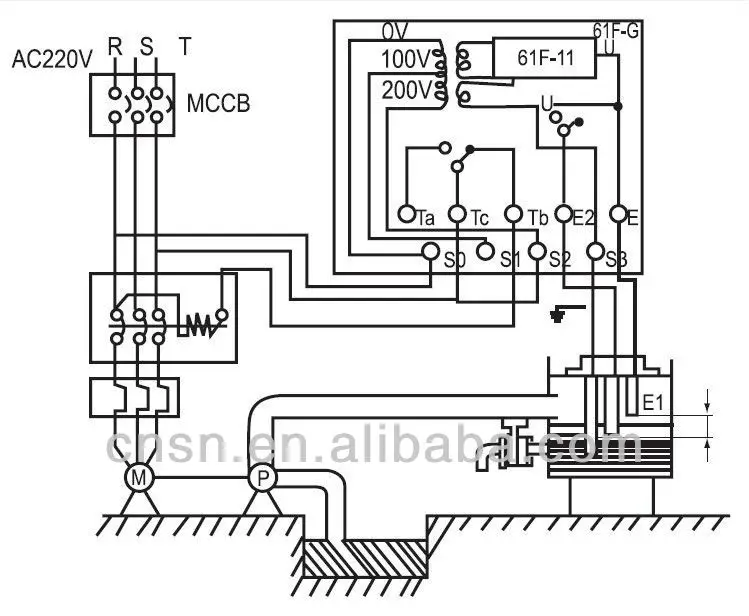

Wiring diagram of a 3phase submersible pump with two float switch com. 61f g switch pdf manual download. There are 9 products of floatless level controllers.
